The images on the right show the main components of the EG System and the image below shows these components playing a major role in the project test bench. The testbench is the hardware component in the 'hardware-in-the-loop' control loop.

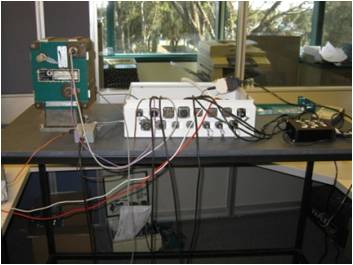

Test Bench
The programmed parameters of the control unit cab be viewed by a hand held programmer and by using the DcDesk2000 software, both available from Heinzmann GmbH & Co. |
EG System Actuator

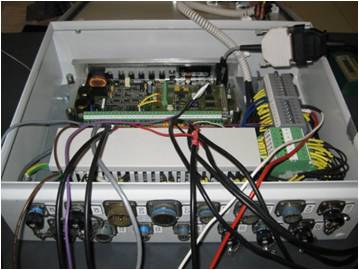

EG System Control box containing the Heinzmann 'Helenos III' Control Unit

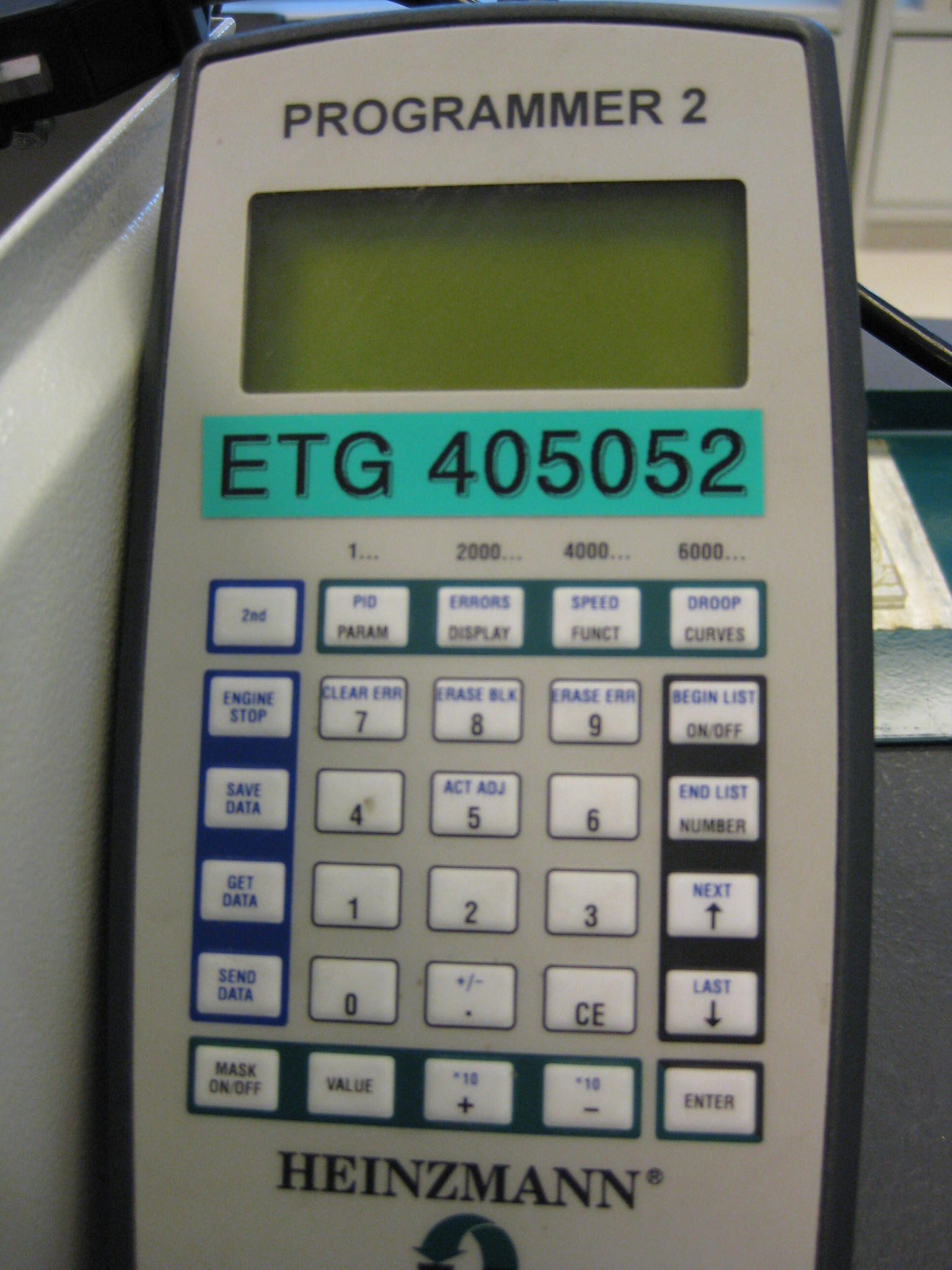

Hand Held Programmer
|
